Energy Saving PE Computer Connecting Adapter Moulding Machine
Brief Desicription
Computer Connecting Adapter Moulding Machine is widely used to mold Computer Adapter, video adapter, notebook adapter, projector adapter
Features:
Economically, less than 10000 USD for normal model
Little power consumption, only 3KW per hour
Little space accordanation, can be installed in 3.5 meters height factory floor.
Technical Index
| Injection Unit |
| Screw Diameter | mm | 26-30 |
| Screw Stroke | mm | 120 |
| Shot Volume | cm3 | 55-74 |
| Injection Weight | g/oz | 63-85(2.2-3.0) |
| Plasticizing Capacity | g/s | 4.2 |
| Max. Injection Pressure | kgf/cm2 | 1677 |
| Injection Rate | cm3/s | 42-57 |
| Injection Speed | mm/s | ----- |
| Screw Speed | r.p.m. | 0-150 |
| Nozzle Force | tf | 4.8 |
| Nozzle Ejection Stroke | mm | 45 or more |
| Clamping Unit |
| Clamping Force | tf | 25 |
| Opening Force | tf | |
| Clamping Stroke | mm | 200 |
| Min. Mold Height | mm | 150 |
| Max. Distance | mm | 350 |
| Distance between Columns | mm | 370*200 |
| Max. Mold Size | mm | 300*200 |
| Platens Size | mm | 500*340 |
| Ejector Stroke | mm | 40 |
| Ejector Force | tf | 1.75 |
| Qty of ejector | pcs | 2-3 |
| System Pressure | kgf/cm2 | 140 |
| Other |
| Oil Tank Cpacity | L | 120 |
| Motor Power | KW | 3.7 |
| Heater Power | KW | 3.6 |
| Temperature Stage | | 2+1 |
| Working Table Height | mm | 929 |
| Dimensions |
| Machine Size | mm | 1250*1000*2900 |
| Weight | T | 0.9 |
| Packing Size | mm | 1400*1100*2000 |
| Packing Weight | T | 1.2 |
Components List
| Item | Item Name | Brand | Original of Country |
| 1 | PLC | PORCHESON | TAIWAN |
| 2 | Screw and barrel | HUAYE | CHINA |
| 3 | Electric motor | Universal | CHINA |
| 4 | Seal kit | HALLITE | United Kingdom |
| 5 | Solenoid valves | Yuken | Taiwan |
| 6 | Proporional valves | Yuken | Taiwan |
| 7 | Hydraulic motor | White | United States |
| 8 | Linear Scale | Gefran | Italy |
| 9 | Gear pump | Eckerle | Germany |
| 10 | Electrical Connectors | Schneider | France |
| 11 | Tie bar | Genaral | Taiwan |
| 12 | Heater bands | Schneider | France |
Accessory List
|
Optional Accessories(Charged)
|
| 1 | Water Chiller | x | 1 |
| 2 | Grinder | x | 1 |
| 3 | Blender | x | 1 |
| 4 | Dryer | x | 1 |
| 5 | Loading machine | x | 1 |
| 6 | Honeycomb Dehumidifiers | x | 1 |
| 7 | Mold Temperature Controller | x | 1 |
Price List
| QTY=1 set | 8500-12500 | USD/set | FOB Shenzhen |
| QTY=2-5 set | 2-3% off | USD/set | FOB Shenzhen |
| QTY=6-10 set | 5-7% off | USD/set | FOB Shenzhen |
| More | Negotiable |
After-sales service
QTY=1 PCS, online technical support
QTY=2-4 PCS, our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person
QTY=5-6 PCS, techincians on site , labor free but hotel and food are borne by you.

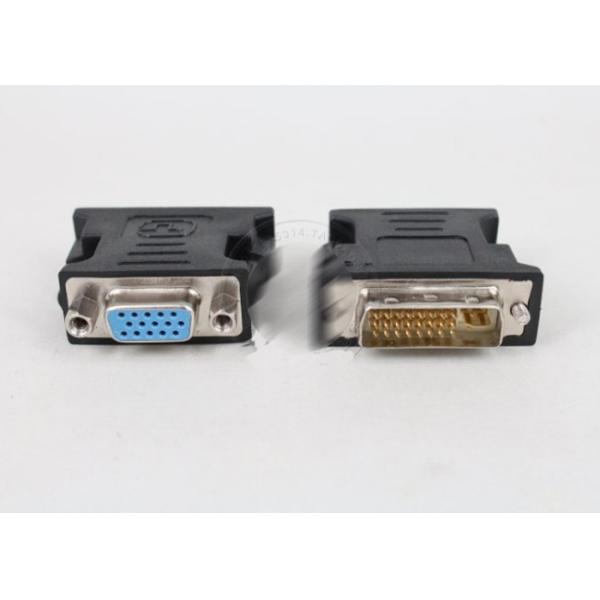

Samples Made by Computer Connecting Adapter Moulding Machine
Molds ,forms, tools for Computer Adapter

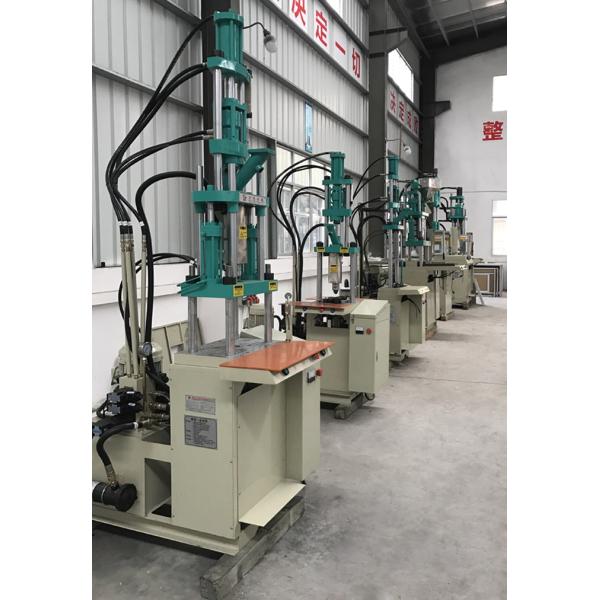

Workshop of computer adapter machine
