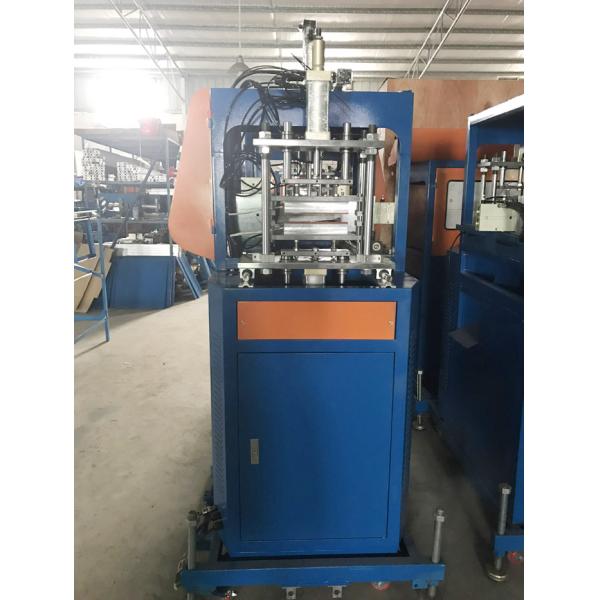

35T Foiled Hang Tag Automatic Injection Moulding Machine Standard 10 Cavities For Clothes
Applications:
PP cloth tag for clothes
PS String tags for hand bag
Seal tags for student bag
Label tags
Foiled Printing string tags
General cotton Tags
Waxed Tag string
Features:
Full Automatical,no need labor
High efficiency,cycle time 6-10s, 10-16 cavities
High speed injection machine, saving power by 60%
One stop purchase ,a whole set Solution
On site technicial support available
Siemens PLC with internet, technicial support online
Easy Changed Mold and LOGO
Parameters:
| Injection Unit |
| Screw Diameter | mm | 26-32 |
| Screw Stroke | mm | 140 |
| Shot Volume | cm3 | 64-96 |
| Injection Weight | g/oz | 49-80/1.7-2.8 |
| Plasticizing Capacity | g/s | 4.2-8.2 |
| Max. Injection Pressure | kgf/cm2 | 2530-1563 |
| Injection Rate | cm3/s | 44-71 |
| Injection Speed | mm/s | 116 |
| Screw Speed | r.p.m. | 0-240 |
| Nozzle Force | tf | 4.8 |
| Nozzle Ejection Stroke | mm | 45 or more |
| Clamping Unit |
| Clamping Force | tf | 35 |
| Opening Force | tf | 7.8 |
| Clamping Stroke | mm | 200 |
| Min. Mold Height | mm | 150 |
| Max. Distance | mm | 350 |
| Distance between Columns | mm | 370*210 |
| Max. Mold Size | mm | 350*350 |
| Platens Size | mm | 500*360 |
| Ejector Stroke | mm | 40 |
| Ejector Force | tf | 1.75 |
| Qty of ejector | pcs | 1 |
| System Pressure | kgf/cm2 | 140 |
| General |
| Oil Tank Cpacity | L | 130 |
| Motor Power | KW | 5.5 |
| Heater Power | KW | 3.6 |
| Temperature Stage | | 2+1 |
| Working Table Height | mm | 929 |
| Dimensions |
| Machine Size | mm | 1539*1152*2269 |
| Weight | T | 1.3 |
| Packing Size | mm | 1700*1300*1800 |
| Packing Weight | T | 1.5 |
Key parts List
| Item | Item Name | Brand | Original of Country |
| 1 | PLC | DIHZHOU | TAIWAN |
| 2 | Screw and barrel | HUAYE | CHINA |
| 3 | Electric motor | Universal | CHINA |
| 4 | Seal kit | HALLITE | United Kingdom |
| 5 | Solenoid valves | Yuken | Taiwan |
| 6 | Proporional valves | Yuken | Taiwan |
| 7 | Hydraulic motor | White | United States |
| 8 | Linear Scale | Gefran | Italy |
| 9 | Gear pump | Eckerle | Germany |
| 10 | Electrical Connectors | Schneider | France |
| 11 | Tie bar | Genaral | Taiwan |
| 12 | Heater bands | Schneider | France |
Accessory List
| 1 | Injection Machine | x | 1 |
| 2 | Robot | x | 1 |
| 3 | Mold | x | 1 |
|
Optional Accessories(Charged)
|
| 1 | Water Chiller | x | 1 |
| 2 | Grinder | x | 1 |
| 3 | Blender | x | 1 |
| 4 | Dryer | x | 1 |
| 5 | Loading machine | x | 1 |
| 6 | Honeycomb Dehumidifiers | x | 1 |
| 7 | Mold Temperature Controller | x | 1 |
Price List
| QTY=1 set | 19000-79000 | USD/set | FOB Shenzhen |
| QTY=2-5 set | 2-3% off | USD/set | FOB Shenzhen |
| QTY=6-10 set | 5-7% off | USD/set | FOB Shenzhen |
| More | Negotiable |
After-sales service
QTY=1 PCS,online technical support
QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person
QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.
More Details
Corner of Workshop
